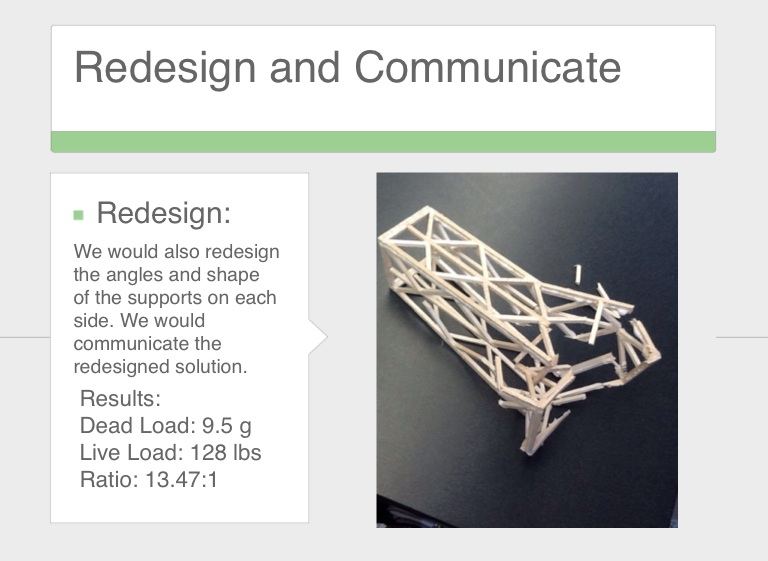

Redesign and Communicate
Redesign:
We would also redesign the angles and shape of the supports on each side. We would communicate the redesigned solution.

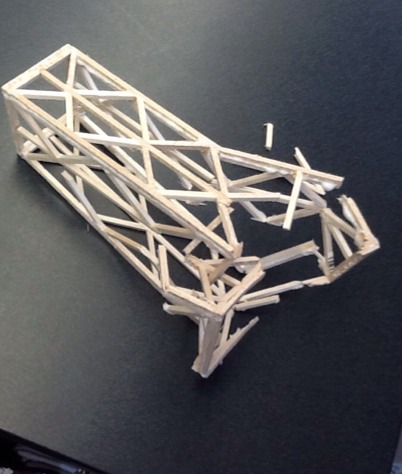

Results:
Dead Load: 9.5 g
Live Load: 128 lbs
Ratio: 13.47:1
