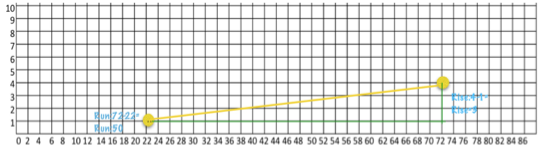

3) A ramp is to be built at the library for wheelchair accessibility. When a grid is placed over the architect’s plans, the top of the ramp has coordinates of (72m,4m). The bottom of the ramp has coordinates (22m,1m). Will the ramp meet safety specifications? Graph this situation on the graph paper provided.
Task 2
___ = 0.6
 50
Rise:3
Run:50
3
Slope =0.6
Yes,it will meet safety specifications because maximum slope for a wheelchair is 0.125 and 0.06 <0.125
