SERIES 2400

Skid 1 configuration. Progressive cavity pump, 0.025 to 24 GPH neat polymer, 0.2 to 40 GPM solution. Control level Db through E.

SERIES 12000

Skid 3 configuration. Progressive cavity pump, 2.5 to 120 GPH neat polymer, 15 to 200 GPM solution. Control level Db through RpSB.

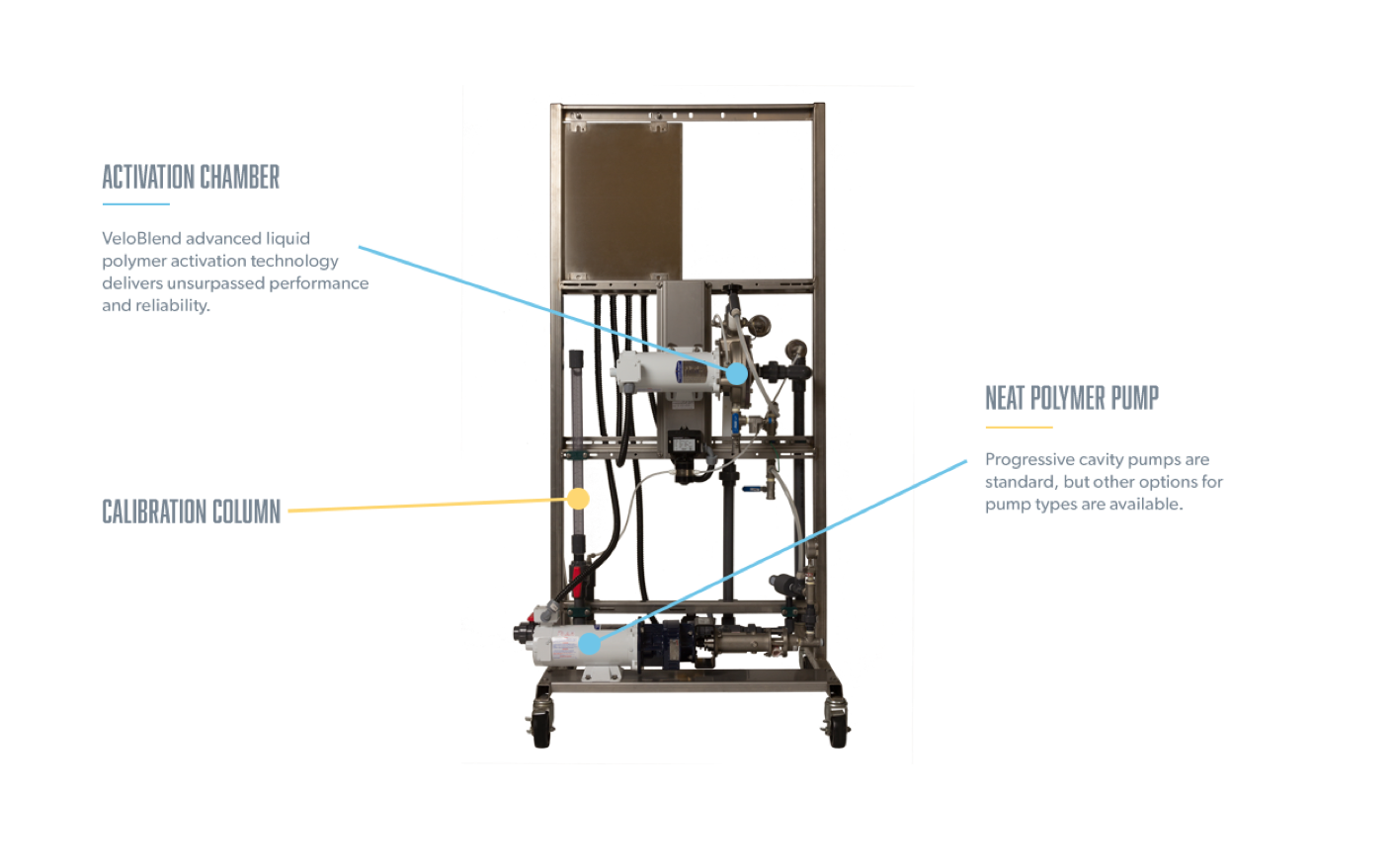

SKID CONFIGURATIONS

—

VELOBLEND SYSTEMS

VIEW BACK >

SERIES 36000

Skid 4 configuration. Progressive cavity pump, 4.5 to 360 GPH neat polymer, 30 to 600 GPM solution. Control level Db and Rw.

SERIES 6000

Skid 2 configuration. Progressive cavity pump,

0.025 to 60 GPH neat polymer, 0.2 to 100 GPM solution. Control level Db through RpSB.
