Theory of GEV’s

Peter

Lift : Angle of Attack

- Angle of attack to be between 9 degrees and 18 degrees

Figure 4 : Flow pattern on suction surface of a wing in ground effect

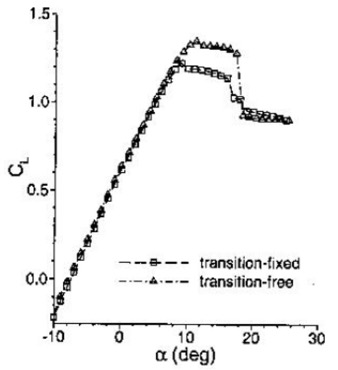

Figure 5 : Lift coefficient against angle of attack for a Tryrell-26 wing in ground effect
