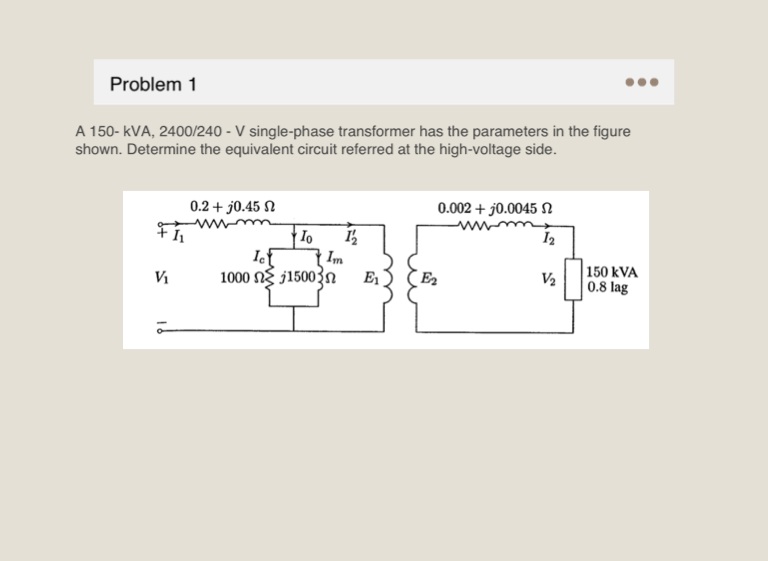

Problem 1

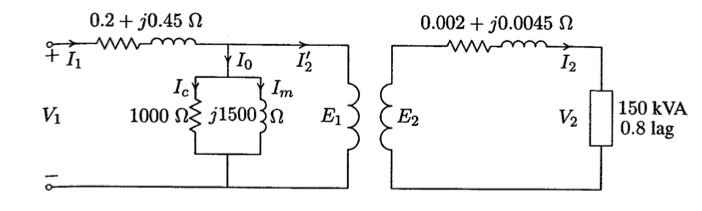

A 150- kVA, 2400/240 - V single-phase transformer has the parameters in the figure shown. Determine the equivalent circuit referred at the high-voltage side.
