Solderability Testing
Laboratory Process Guide 2023

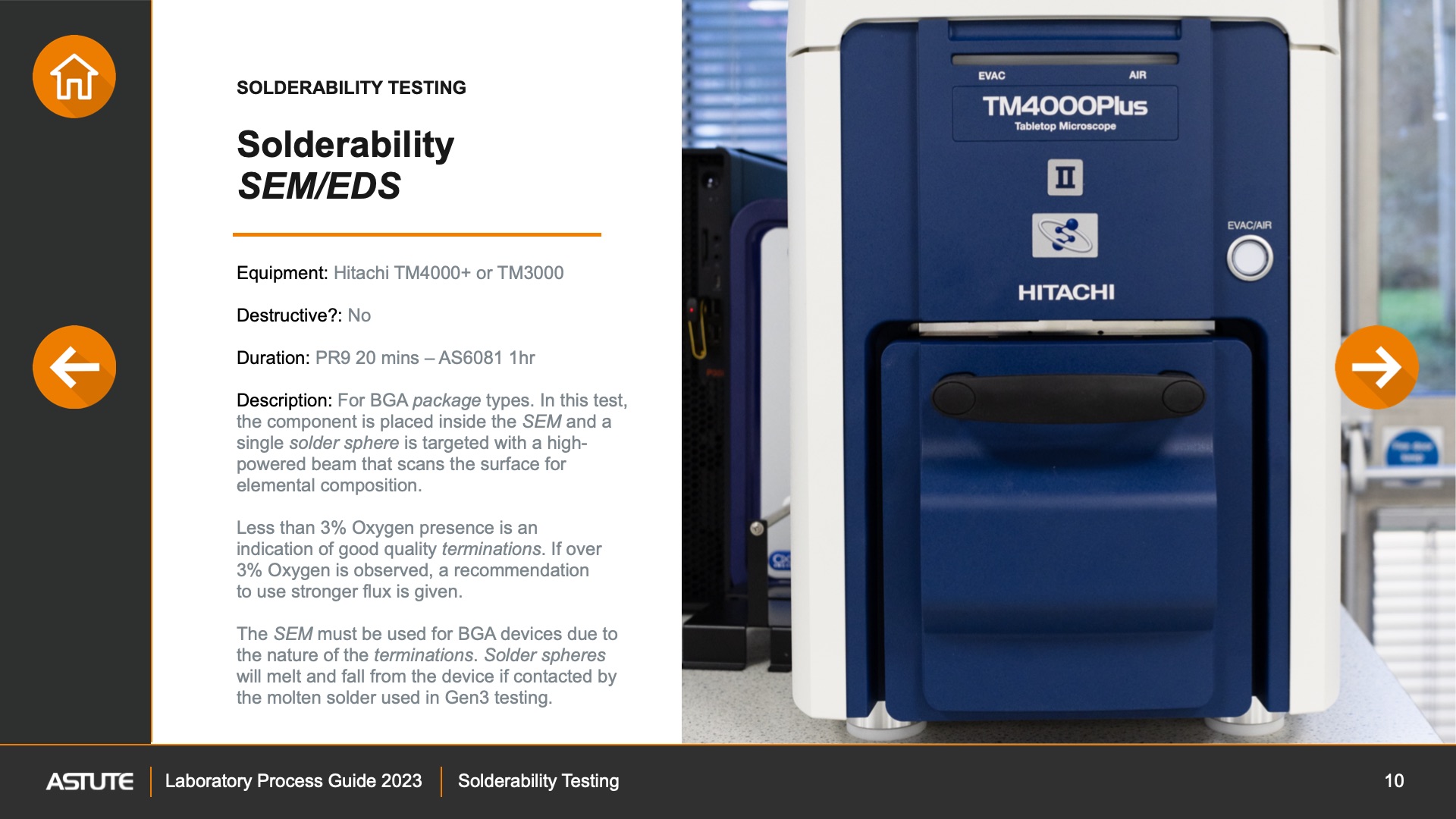

SOLDERABILITY TESTING
Solderability
SEM/EDS
Equipment: Hitachi TM4000+ or TM3000
Destructive?: No
Duration: PR9 20 mins – AS6081 1hr
Description: For BGA package types. In this test, the component is placed inside the SEM and a single solder sphere is targeted with a high-powered beam that scans the surface for elemental composition.
Less than 3% Oxygen presence is an
indication of good quality terminations. If over
3% Oxygen is observed, a recommendation
to use stronger flux is given.
The SEM must be used for BGA devices due to the nature of the terminations. Solder spheres will melt and fall from the device if contacted by the molten solder used in Gen3 testing.
