Appendix
Laboratory Process Guide 2023
APPENDIX
Re-surfacing, NMP and HTC/Dynasolve

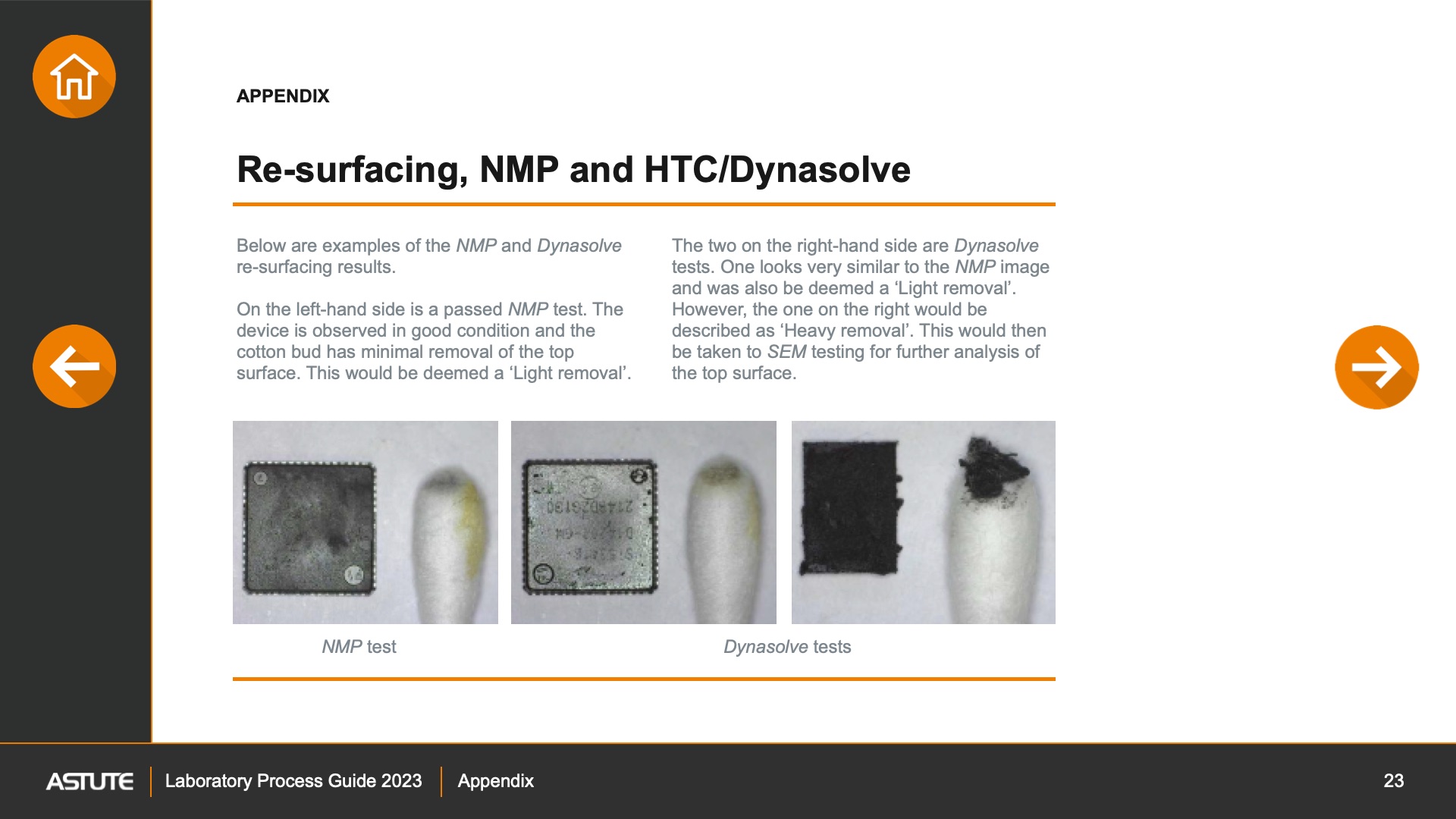

Below are examples of the NMP and Dynasolve re-surfacing results.
On the left-hand side is a passed NMP test. The device is observed in good condition and the cotton bud has minimal removal of the top surface. This would be deemed a ‘Light removal’.
The two on the right-hand side are Dynasolve tests. One looks very similar to the NMP image and was also be deemed a ‘Light removal’. However, the one on the right would be described as ‘Heavy removal’. This would then be taken to SEM testing for further analysis of the top surface.
NMP test
Dynasolve tests
23
